UNIT 27 - OPERATING SYSTEMS
Management of Processes
Managing the processor requires:
- Ensuring that each process
/ application receives enough of the processor's time to function efficiently.
- Using as many processor cycles for real work as possible.
The basic unit of software that the operating system deals with in scheduling
the work done by the processor is either a process or a thread, depending
on the operating system.
The application you see (word processor, spreadsheet, etc. ) is a process,
but that application may be responsible for a number of other other processes
to begin, for tasks like communications with other devices or other computers.
There are many processes that run that you won’t be aware of them
running. For example, Windows XP and UNIX can have dozens of background
processes running to handle the network, memory management, disk management,
checking for viruses etc.
Therefore, a process is software that performs some action and can be
controlled -- by a user, by other applications or by the operating system.
It is processes, not applications specifically that the operating system
controls and schedules for execution by the CPU. In a single-tasking system,
the schedule is straightforward. The operating system allows the application
to begin running, suspending the execution just long enough to deal with
interrupts and user input.
Interrupts are special signals sent by hardware or software to the CPU.
It is like another part of the computer raised its hand to ask for the
CPU's attention. Sometimes the operating system will schedule the priority
of processes so that interrupts are masked -- that is, the operating system
will ignore the interrupts from some sources so that a particular job
can be finished as quickly as possible. There are some interrupts (such
as those from error conditions or problems with memory) that are so important
that they can't be ignored. These non-maskable interrupts (NMIs) must
be dealt with immediately, regardless of the other tasks at hand.
While interrupts add some complication to the execution of processes in
a single-tasking system, the job of the operating system becomes much
more complicated in a multi-tasking system. The operating system must
arrange the execution of applications so that it appears there are several
things happening at once. This is complicated because the CPU can only
do one thing at a time. In order to give the appearance of lots of things
happening at the same time, the operating system has to switch between
different processes thousands of times a second.
Here's how it happens:
- A process occupies a certain
amount of RAM. It also makes use of registers, stacks and queues within
the CPU and operating-system memory space.
- When two processes are multi-tasking, the operating system allots
a certain number of CPU execution cycles to one program.
- After that number of cycles, the operating system makes copies of
all the registers, stacks and queues used by the processes, and notes
the point at which the process paused in its execution.
- It then loads all the registers, stacks and queues used by the second
process and allows it a certain number of CPU cycles.
- When those are complete, it makes copies of all the registers, stacks
and queues used by the second program, and loads the first program.
All of the information needed to keep track of a process when switching
is kept in a data package called a process control block (PCB). The process
control block typically contains:
- An ID number that identifies
the process
- Pointers to the locations in the program and its data where processing
last occurred
- Register contents
- States of various flags and switches
- Pointers to the upper and lower bounds of the memory required
- A list of files opened by the process
- The priority of the process
- The status of all I/O devices needed by the process

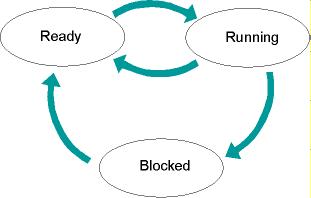

Each process has a status associated with it. A process will only consume
CPU time when its instructions are being executed by the CPU and it is in
its Running state. Many processes consume no CPU time until
they get some sort of input. For example, a process might be waiting on
a keystroke from the user . While it is waiting for the keystroke, it uses
no CPU time and is said to be Blocked. When the keystroke
arrives, the OS changes its status. When the status of the process changes,
from Blocked to Ready, the information
in the process control block must be used like the data in any other program
to direct execution of the task-switching portion of the operating system.
| |
This
process swapping happens without direct user interference, and each process
gets enough CPU cycles to accomplish its task in a reasonable amount of
time. Trouble can come, though, if the user tries to have too many processes
functioning at the same time. The operating system itself requires some
CPU cycles to perform the saving and swapping of all the registers, queues
and stacks of the application processes. If enough processes are started,
and if the operating system hasn't been carefully designed, the system can
begin to use the vast majority of its available CPU cycles to swap between
processes rather than run processes. When this happens, it's called thrashing,
and it usually requires some sort of direct user intervention to stop processes
and bring order back to the system.
One way that operating-system designers reduce the chance of thrashing is
by reducing the need for new processes to perform various tasks. Some operating
systems allow for a "process-lite," called a thread, that can
deal with all the CPU-intensive work of a normal process, but generally
does not deal with the various types of I/O and does not establish structures
requiring the extensive process control block of a regular process. A process
may start many threads or other processes, but a thread cannot start a process.
So far, all the scheduling we've discussed has concerned a single CPU. In
a system with two or more CPUs, the operating system must divide the workload
among the CPUs, trying to balance the demands of the required processes
with the available cycles on the different CPUs. Asymmetric operating systems
use one CPU for their own needs and divide application processes among the
remaining CPUs. Symmetric operating systems divide themselves among the
various CPUs, balancing demand versus CPU availability even when the operating
system itself is all that's running.
Even if the operating system is the only software with execution needs,
the CPU is not the only resource to be scheduled. Memory management is the
next crucial step in making sure that all processes run smoothly.
| |
